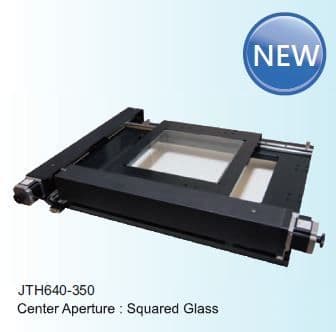

Motorised Microscope Stage JT640-350
Our motorised microscope stages have been designed as drop-in replacements for manual stages found on many microscopes to provide motorised XY positioning of samples. Alternatively, optical mounting brackets enable the stage to be attached to an optical table or breadboard as part of a custom-made microscope setup or for use in photonics applications
Available in metric and imperial versions (please specify if imperial is required. Metric is supplied as standard)
Available in metric and imperial versions (please specify if imperial is required. Metric is supplied as standard)
- Stage dimension: 400x340mm
- Centre glass dimension: 260x260mm
- Can add a linear encoder if required
- Travel range: XY=350
- Load: 20kg
- Resolution: 2.5um
- Repeatability: ±2.5um with 100mm travel
- Straightness: ±0.03mm
- Highly accurate
- Metric/imperial versions available
